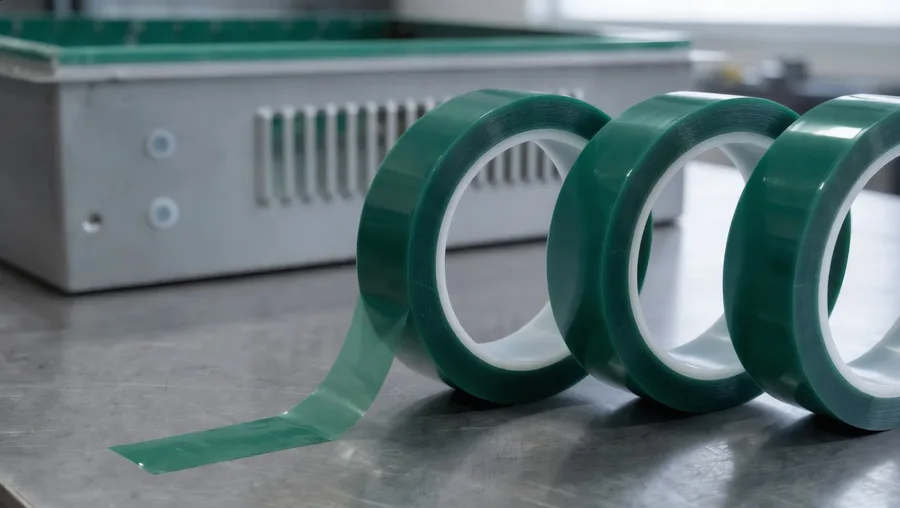

Enclosures
The whole inside taped; the outside coated as usual.
Green polyester tape manufacturer · Taicang, China
High-temperature polyester tape.
A green silicone-adhesive masking tape for PCB plating, coating and painting. Protect what must stay bare, run it through up to 30 minutes at 200 °C, then peel it off clean.
For PCB plating shops, paint shops, die-cutters and distributors · no residue after 200 °C for 30 minutes · reply within 24 hours.
- 200 °C · 30 minutes
- Peels off with no residue (data sheet)
- 70 °C · 3 days
- No residue on steel, aluminium or plastic (in-house test)
- RoHS: all ten not detected
- F, Br, I not detected; Cl 190 mg/kg (SGS)
Enclosures, cabinets, metal panels — tape them before coating.
PCB plating shops, paint shops and die-cutters use it too, and so do artificial-leather and label makers.

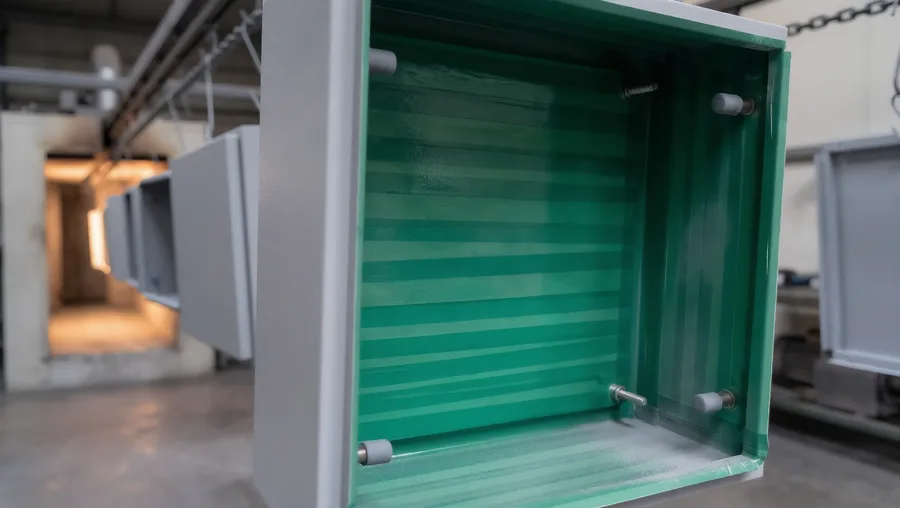

Cabinets
Inner walls taped, the cabinet is hung on the line and goes into the oven.

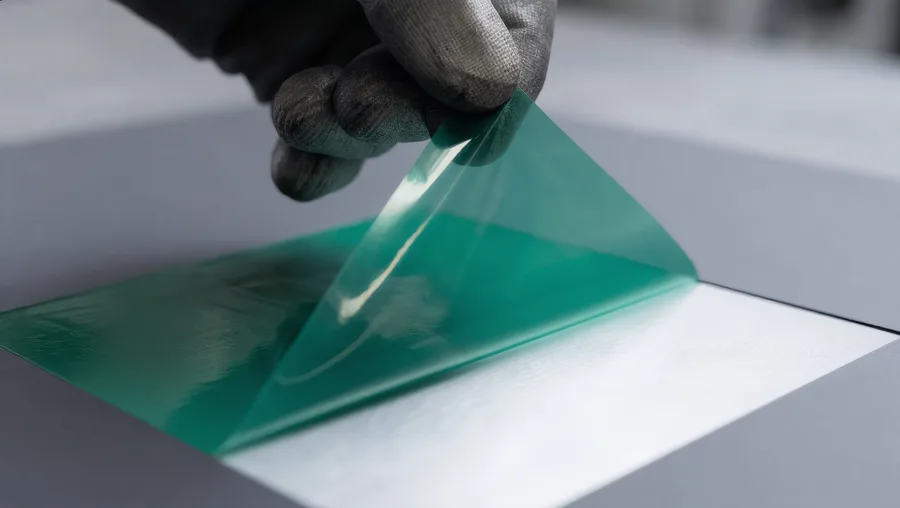

Metal panels
After coating, peel the tape off — a clean edge, no adhesive left on the panel.
Out of the oven, it still peels off clean.
No residue after 200 °C for 30 minutes is on the data sheet; no residue after 3 days at 70 °C is our own test.
3 days at 70 °C
We put the tape on steel, aluminium and plastic, baked them at 70 °C for 3 days, let them sit for 2 hours, then peeled: no adhesive left on any of them — it just takes a little more force to peel. Our own test, September 2026.
The green is the adhesive
The tape has two layers: 0.038 mm clear polyester film underneath, and a 0.017 mm coat of silicone adhesive on top — the green is the colour of that adhesive (SH-M002 data sheet).
Want the numbers? Open the spec table (thickness, tack, heat rating, roll width)
| Grade | Name | Thickness (mm) | Tack (N/25mm) | Heat rating | Roll width (mm) |
|---|---|---|---|---|---|
| SH-M001 | High-tack green | 0.05±0.01 | 8±1.5 | 200 °C | 980 |
| SH-M002 | High-tack green | 0.05±0.01 | 8±1.5 | 200 °C | 980 |
| SH-M003 | High-tack green | 0.08±0.01 | 8±1.5 | 200 °C | 980 |
| SH-M004 | High-tack green | 0.1±0.01 | 8±1.5 | 200 °C | 980 |
| SH-M002C | High-tack clear silicone tape | 0.05±0.01 | 9±1.5 | 200 °C | 1180 |
| SH-M003CL-05 | Low-tack clear silicone tape | 0.055±0.01 | 4±1 | 200 °C | 1250 |
| SH-M001B | High-tack blue, bubble-free | 0.05±0.01 | 8±1.5 | 200 °C | 1020 |
| SH-M001R | High-tack red, bubble-free | 0.05±0.01 | 8±1.5 | 200 °C | 1120 |
| SH-M001Y | High-tack yellow, bubble-free | 0.05±0.01 | 8±1.5 | 200 °C | 1020 |
| SH-M001G | High-tack green, bubble-free | 0.05±0.01 | 8±1.5 | 200 °C | 1020 |
| SH-MJ001R | Red release splicing tape | 0.086±0.01 | 13±3 | 200 °C | 500 |
| SH-MJ002BL | Blue splicing tape | 0.086±0.01 | 13±3 | 200 °C | 1280 |
| SH-M07 | Red composite crepe | 0.22±0.02 | ≥12 | 220 °C | 1020 |
| SH-M08 | White composite red crepe | 0.20±0.02 | ≥10 | 220 °C | 1020 |
These are the values on our spec sheet; tack is measured on SUS304 mirror steel. The SH-M002 data sheet gives the method: 180° peel at 300 mm per minute, 23±2 °C, 55±20% RH. Rolls are slit to the width you need.
Choose your next check
Start with the question you need answered.
You do not need to read every page. Choose the question that matches your process, and we will show you the evidence to check before you request a sample.
01 · Process fit
Will it mask the surface through coating or plating?
See where the tape is applied, what must stay bare and when it is removed after the heat cycle.
See the masking process →02 · Material choiceDoes your process need PI tape instead?
Compare this 200 °C, 30-minute masking tape with PI tape rated to 220 °C.
Compare polyimide tape →03 · Data checkAre those peel values really comparable?
First make sure the substrate, peel angle, speed, temperature and humidity are the same.
Read the test method →Tell me about your oven, and I'll pick the tape.
“Coating or plating? What temperature, how long, and how many passes? That's all I need.”
If you have a tape you use now, send us a piece — we'll test it first, then match it and aim to do better. I'll reply within 24 hours: leave me a message with the button below, or email me directly.
