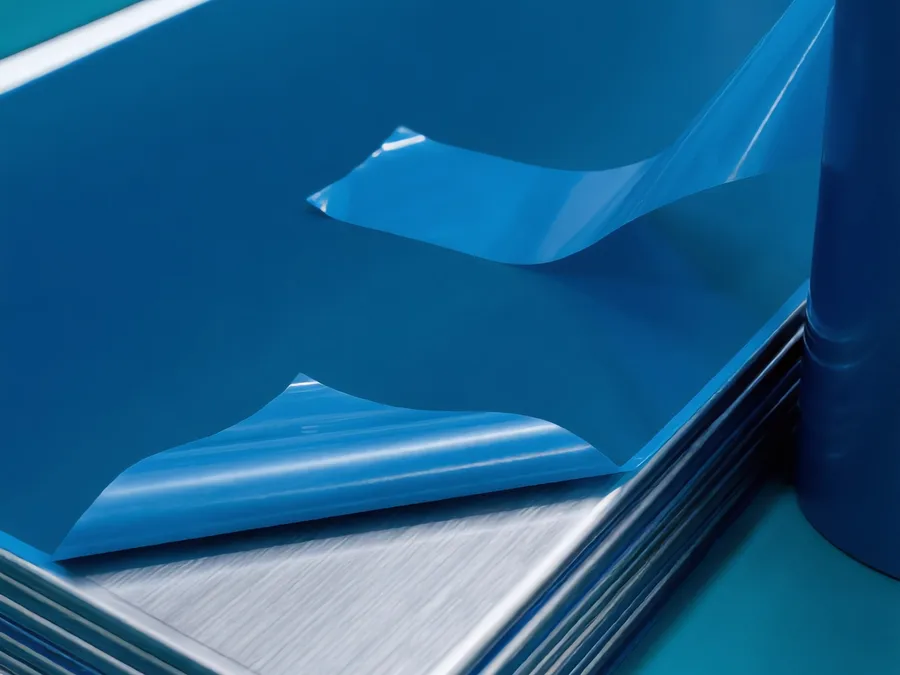

Stainless steel sheet
A layer on the sheet surface keeps it protected. Blue or clear film.
PE protective film, conforms even to irregular parts.
Acrylic adhesive coated on PE film. The film is soft; it's low-noise, peels easily and is antistatic. Tack from 1–3 to 1000 gf/25mm.
- Tack 1–3 to 1000
- gf/25mm (spec sheet)
- Clear, blue, embossed
- Plus adhesive-free SH-40E and SH-50E (spec sheet)
- 200 m per roll
- At 0.05–0.08 mm; 100 m at 0.1–0.15 mm (spec sheet)
Stainless steel, acrylic sheet, plastic housings — it goes on all of them.
It also protects lenses and glass sheet during die-cutting, and touchscreen glass and moulded housings.

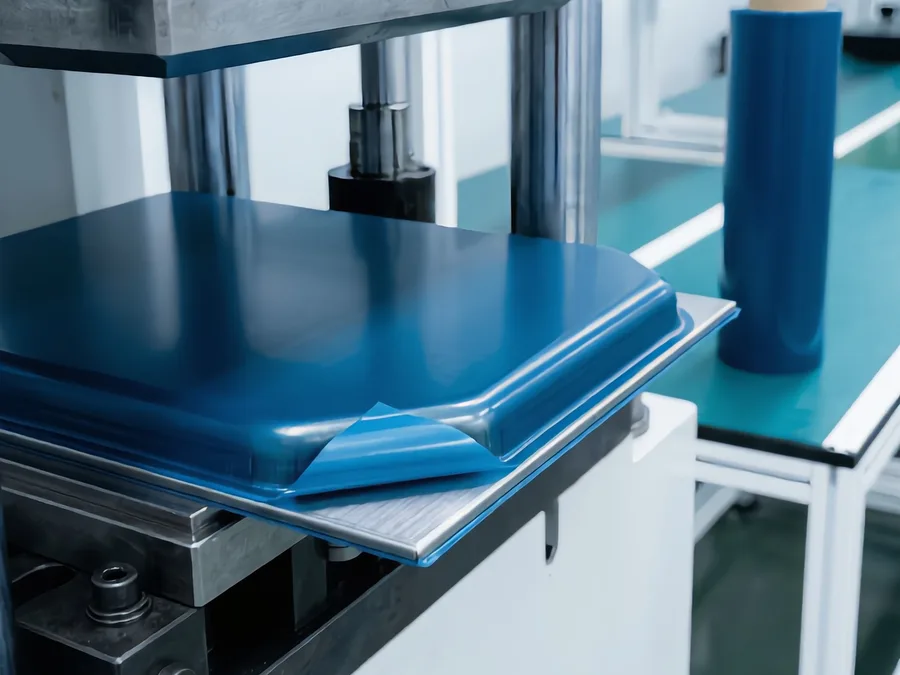

Odd-shaped parts
The film is soft, so it follows parts that aren't flat.

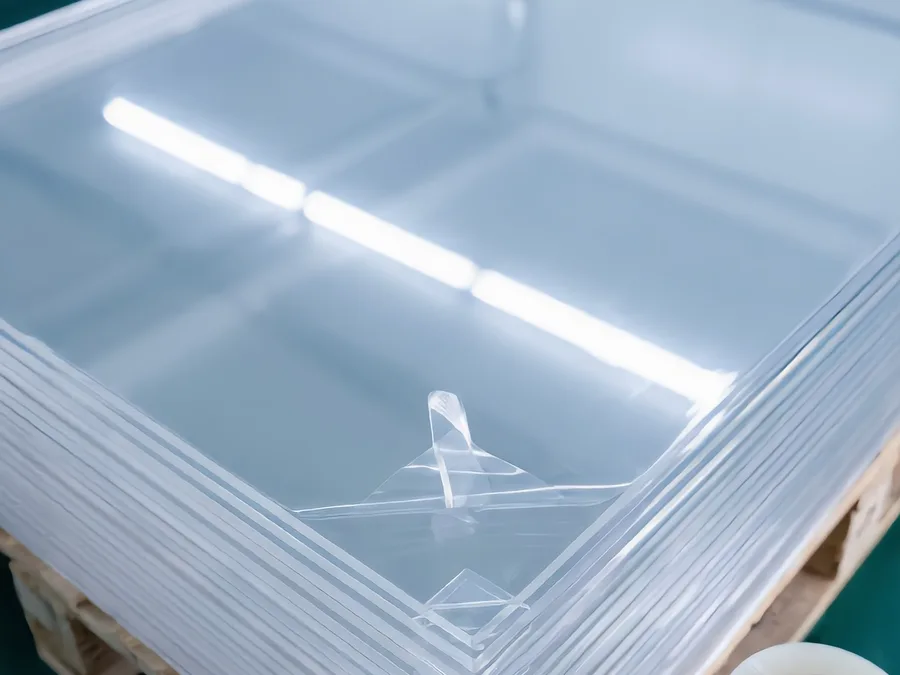

Acrylic sheet, glass, lenses
SH-40E and SH-50E carry no adhesive; SH-50E is made for glass.
Want the numbers? Open the spec table (tack, thickness, colour, roll width)
| Grade | Tack (gf/25mm) | Thickness (mm) | Colour | Roll width (mm) |
|---|---|---|---|---|
| SH-40E | 1～3 | 0.05±0.005 | Clear, adhesive-free | 1240 |
| SH-50E | 1～3 | 0.05±0.005 | Clear, adhesive-free, for glass | 1250 |
| SH-05B | 5±3 | 0.05±0.005 | Blue | 1270 |
| SH-05H | 5±3 | 0.05 / 0.08±0.005 | Clear | 1200 |
| SH-10A | 8±3 | 0.05±0.005 | Clear | 1200 / 1250 |
| SH-10B | 10±5 | 0.05±0.005 | Blue | 1200 |
| SH-10H | 10±5 | 0.05 / 0.06 / 0.08 / 0.1 / 0.15±0.005 | Clear | 1200 / 1270 |
| SH-30E | 10±5 | 0.05 / 0.08±0.005 | Clear, embossed | 1200 / 1250 |
| SH-30EB | 10±5 | 0.05±0.005 | Blue, embossed | 1200 |
| SH-15B | 15±5 | 0.05±0.005 | Blue | 1200 |
| SH-15H | 15±5 | 0.05 / 0.08 / 0.15±0.005 | Clear | 1200 / 1250 / 1300 |
| SH-30EG | 20±10 | 0.04±0.005 | Embossed | 1200 |
| SH-20H | 20±8 | 0.05 / 0.06±0.005 | Clear | 1200 / 1360 |
| SH-30B | 25±10 | 0.05±0.005 | Blue | 1200 |
| SH-30H | 25±10 | 0.05 / 0.08±0.005 | Clear | 1200 |
| SH-40H | 30±10 | 0.05 / 0.1±0.005 | Clear | 1200 |
| SH-50B | 120±40 | 0.05±0.005 | Blue | 1200 |
| SH-50H | 120±40 | 0.05±0.005 | Clear | 1200 |
| SH-100B | 160±40 | 0.05±0.005 | Clear | 1200 |
| SH-100H | 160±40 | 0.05 / 0.06 / 0.1 / 0.15±0.005 | Clear | 1200 |
| SH-150B | 160±40 | 0.05±0.005 | Blue | 1200 |
| SH-200B | 250±80 | 0.05±0.005 | Blue | 1200 |
| SH-200H | 250±80 | 0.05 / 0.08 / 0.15±0.005 | Clear | 1200 / 1000 |
| SH-300B | 350±80 | 0.05±0.005 | Blue | 1200 |
| SH-300H | 350±80 | 0.05 / 0.08 / 0.15±0.005 | Clear | 1200 / 1100 / 1000 |
| SH-400B | 400±120 | 0.05±0.005 | Blue | 1200 |
| SH-400H | 400±120 | 0.05±0.005 | Clear | 1200 |
| SH-500B | 500±150 | 0.05±0.005 | Blue | 1200 |
| SH-500H | 500±150 | 0.05 / 0.08±0.005 | Clear | 1200 |
| SH-500SB | 500±150 | 0.075±0.005 | Blue | 1200 |
| SH-610H-15 | 550±110 | 0.15 | Clear | 1250 |
| SH-600B | 700±180 | 0.05±0.005 | Blue | 1200 |
| SH-600H | 700±180 | 0.05 / 0.08 / 0.15±0.005 | Clear | 1200 |
| SH-800B-05 | 1000±200 | 0.05 | Blue | 1200 |
| SH-800H-05 | 1000±200 | 0.05 | Clear | 1200 |
These are the values on our spec sheet. Adhesive-free SH-40E and SH-50E were measured on acrylic sheet; for the others the sheet doesn't state test conditions — tell me if you need them and we'll confirm and send them to you. Rolls are slit to the width you need.
What are you putting it on? Tell me, and I'll pick the grade.
“What material does it go on, and what does it need to do? How thick, what colour, how much tack, antistatic or not? Tell me whatever you know.”
If you have a film you use now, send us a piece — we'll test it first, then match it and aim to do better. I'll reply within 24 hours: leave me a message with the button below, or email me directly.
