Strong adhesion
Acrylic adhesive on a low-VOC adhesive system.
Acrylic PET protective film, low tack to high tack.
Acrylic adhesive coated on PET film. It bonds well, and the adhesive is low-VOC. Tack from 2±1 to over 1000 gf/25mm, in single and double layer.
- Tack 2±1 to over 1000
- gf/25mm (spec sheet)
- Single and double layer
- Single-layer rolls wind without bubbles (spec sheet)
- Coloured, antistatic
- Made to order (spec sheet)
Low tack or high tack — there's a grade on the sheet.
From 2±1 gf/25mm at the low end to over 1000 at the top, with steps all the way between.
Single layer, no bubbles on the roll
Single-layer grades can be wound without bubbles; double layer is available too.
Coloured or antistatic, made to order
Need a colour or antistatic? We make it to order — and the length per roll is up to you, too.
Want the numbers? Open the spec table (single/double layer, tack, film + adhesive, roll width)
| Grade | Single / double | Tack (gf/25mm) | Film + adhesive (µm) | Roll width (mm) |
|---|---|---|---|---|
| SH-0501Z-05 | Single | 2±1 | 50 + 5 | 1250 |
| SH-0701Z-10 | Single | 2±1 | 70 + 10 | 1250 / 1000 |
| SH-0502Z-05 | Single | 5.5±2.5 | 50 + 5 | 1250 |
| SH-0502Z-10 | Single | 6±3 | 50 + 10 | 1250 |
| SH-0702Z-10 | Single | 6±3 | 70 + 10 | 1250 |
| SH-0502TM | Double | 10±5 | 50 + 10 | 980 |
| SH-0702TM | Double | 10±5 | 75 + 10 | 1000 |
| SH-0303TM | Double | 15±5 | 38 + 10 | 1220 |
| SH-0902TM | Double | 15±5 | 90 + 20 | 980 |
| SH-0504Z-10 | Single | 20±8 | 50 + 10 | 1250 / 1050 |
| SH-0704Z-10 | Single | 20±8 | 70 + 10 | 1250 |
| SH-0704TM | Double | 20±8 | 70 + 15 | 980 |
| SH-0506TM | Double | 30±10 | 50 + 15 | 980 |
| SH-0508Z-10 | Single | 60±20 | 50 + 10 | 860 / 1090 |
| SH-0708TM | Double | 60±20 | 70 + 15 | 1050 |
| SH-1806TM | Double | 60±20 | 188 + 15 | 1040 |
| SH-0709TM | Double | 100±20 | 70 + 15 | 1050 |
| SH-0285TM | Double | 700±200 | 25 + 10 | 980 |
| SH-02K1T | Single | 850±150 | 30 + 20 | 980 |
| SH-05K8TM | Double | ≥1000 | 50 + 15 | 980 |
These are the values on our spec sheet. The sheet doesn't state test conditions (what substrate, what angle and speed of peel) — tell me if you need them and we'll confirm and send them to you. Rolls are slit to the width you need.
It stays on electronics and sheet material while they're processed.
If your use or spec is different, we can develop the film to it.

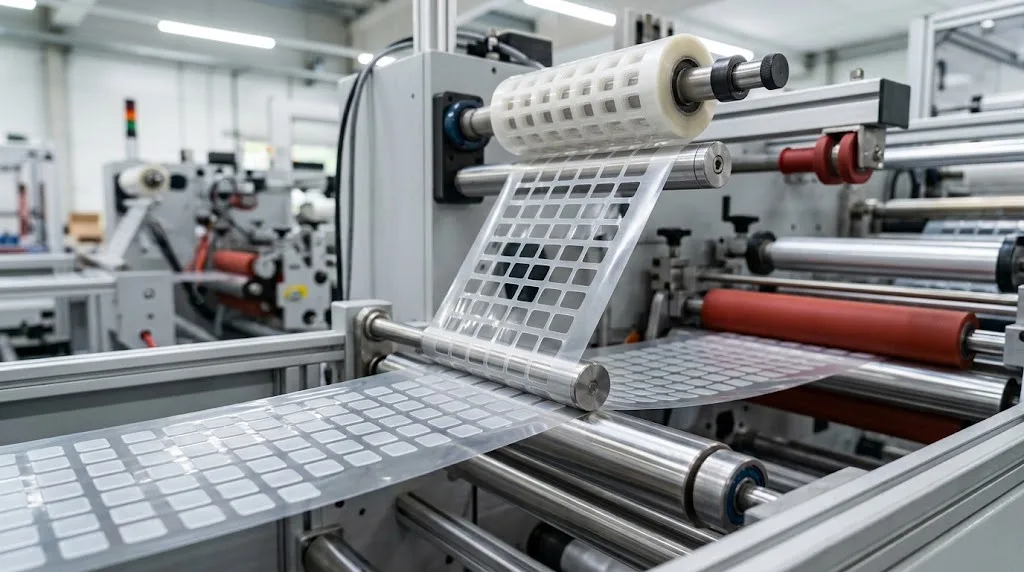

Converters: carrier & waste stripping
The film holds from underneath; the waste comes away and the parts stay on the film.
See die-cutting

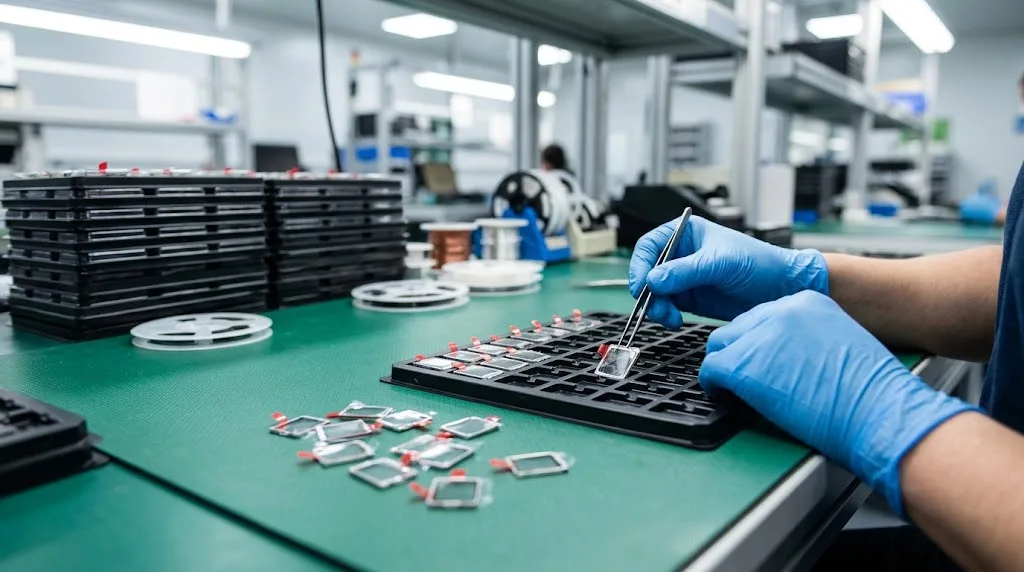

Electronics: in-process protection
Through assembly and handling, the film keeps off scratches and dust.
Request a free sampleWhat are you putting it on? Tell me, and I'll pick the grade.
“What does it go on, and what does it need to do? Single or double layer, how thick, how much tack, any colour, antistatic or not? Tell me whatever you know.”
If you have a film you use now, send us a piece — we'll test it first, then match it and aim to do better. I'll reply within 24 hours: leave me a message with the button below, or email me directly.
